Lecture No:2
Wire that is used in” NETWORKING’’
Types of Wire:- Straight
- Cross
Straight:
Straight cable is use for connecting computers with network devices.
Straight cable is use for connecting computers with network devices.
No | 1st End | 2nd End |
1 | Orange white | Orange white |
2 | Orange | Orange |
3 | Green white | Green white |
4 | Blue | Blue |
5 | Blue white | Blue white |
6 | Green | Green |
7 | Brown white | Brown white |
8 | Brown | Brown |

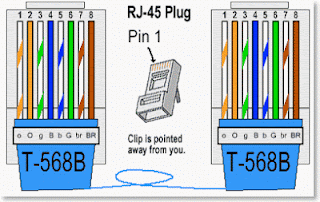

Screen shoot:
Cross:
Cross cable is use for connecting one computer with another computer.
No | 1st End | 2nd End |
1 | Orange white | Green white |
2 | Orange | Green |
3 | Green white | Orange white |
4 | Blue | Blue |
5 | Blue white | Blue white |
6 | Green | Orange |
7 | Brown white | Brown white |
8 | Brown | Brown |
Screen Shoot:
